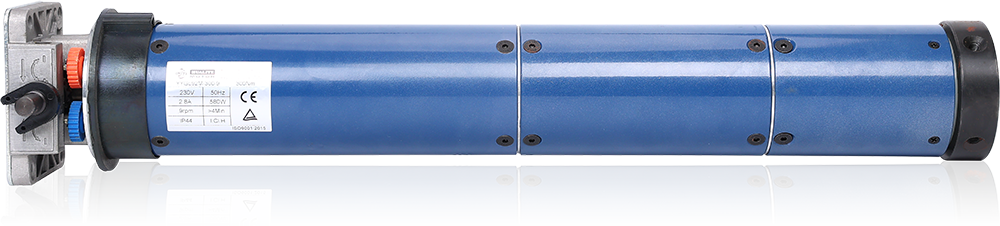

YYGL92M Tubular Motor – High-Torque & Reliable Motor for Roller Shutters
Product Overview
The YYGL92M tubular motor is a heavy-duty 92mm motor engineered for large roller shutters. Designed for high torque and reliable operation, it delivers smooth and quiet performance even under demanding loads.
With robust construction and CE certification, the YYGL92M ensures long-lasting durability and consistent operation. It is ideal for commercial buildings, large residential windows, or any application where strong lifting power is required.
This tubular motor supports various control options including wall switches, remote control, and smart home automation, providing flexibility and convenience.
Key Features
- Heavy-Duty High Torque – Perfect for large roller shutters
- Quiet Operation – Advanced noise-reduction technology ensures minimal disturbance
- Durable Design – Precision gears and high-quality components for extended lifespan
- 92mm Tube Diameter – Accommodates large roller shutter tubes
- Flexible Control Options – Wall switch, remote control, and smart home integration
- CE & RoHS Certified – Guaranteed safety and reliability
Technical Specifications
| Parameter | Value |
|---|---|
| Model | YYGL92M |
| Tube Diameter | 92 mm |
| Motor Type | AC Tubular Motor |
| Voltage | 230V / 50Hz (optional 110V) |
| Torque Options | 180Nm / 230Nm / 300Nm / 330Nm |
| Speed | 6rpm / 9rpm / 12 rpm |
| Noise Level | ≤50 dB |
| Protection Class | IP44 |
| Control Options | Wall switch, Remote control, Smart home compatible |
| Limit Switch Type | Mechanical / Electronic |
| Max Roller Blind Weight | Up to 200 kg |
| Operating Temperature | -20°C to +50°C |
| Certifications | CE, RoHS |
Applications (H2)
The YYGL92M tubular motor is ideal for large roller shutters in:
- Commercial buildings and offices
- Large residential roller doors
- Industrial facilities requiring heavy-duty shading systems
- Awnings and sun protection systems
- Automated smart home systems
Its quiet, high-torque operation ensures effortless movement and reliable performance even for the largest shading systems.
Q: Can the YYGL92M motor be operated manually during a power outage?
A: Yes, the YYGL92M motor features a manual override system, allowing you to open or close roller shutters or roller blinds by hand during a power failure. This ensures continuous access and safety even when electricity is not available.
2. What applications is the YYGL92M suitable for?
This motor is ideal for heavy-duty roller shutters, large windows, commercial doors, and other automation projects requiring strong, reliable tubular motors.
3. Can the YYGL92M motor be customized?
Yes, the YYGL92M can be customized for different torque, speed, and control options to fit specific project requirements.
4. What accessories are compatible with the YYGL92M motor?
The motor works with a full range of accessories, including remote controls, receivers and adapters, for heavy duty roller shutters, rolling doors.
