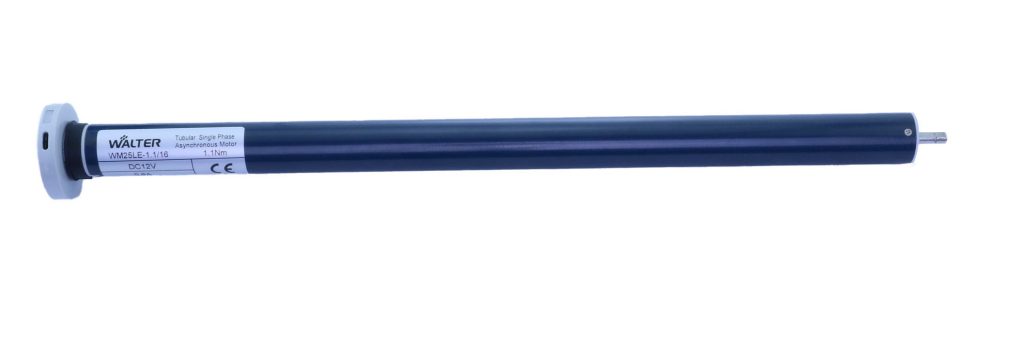

WM25BZ Zigbee Battery Powered Roller Blinds Motor
Smart Zigbee Control. Ultra-Low Power. Fast Charging.
The WM25BZ Zigbee Battery Powered Roller Blinds Motor is an upgraded 25mm battery-powered tubular motor with integrated Zigbee smart control. Based on the proven WM25BR platform, WM25BZ adds seamless smart home integration while maintaining ultra-low standby power consumption and fast Type-C charging—ideal for modern smart shading systems.
Key Features
- 🔗 Built-in Zigbee smart control
Supports Zigbee protocol for stable, low-power smart home integration. - 🔋 Built-in 2600mAh lithium battery
3S battery configuration (12.6V) ensures long operating life. - ⚡ Fast Type-C & PD charging
Standard 5V⎓1A charging with optional PD fast charging up to 18W. - ⏱ Fast charging time
Fully charged in less than 2 hours. - 🧠 Electronic limit switch
Accurate and repeatable limit positioning without mechanical wear. - 📡 433.92 MHz RF remote control
Supports local RF control for flexible operation. - 🔇 Ultra-low standby power consumption
Ultra-low standby power consumption for extended battery life. - 🌞 Optional dedicated Type-C solar panel
Designed exclusively for this motor.
Warning: Use with this motor only. Do not connect to other devices, as it may cause damage.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | WM25BZ |
| Product Type | Roller Blinds Motor |
| Category | 25mm Battery Powered Tubular Motor |
| Battery Capacity | 2600mAh |
| Battery Configuration | 3S Lithium, 12.6V |
| Tube Diameter | 25mm |
| Motor Length | 450mm |
| Rated Torque | 1.1 Nm |
| Speed | 28 rpm |
| Rated Motor Current | 0.85A |
| Standby Current | ≤ 100 µA |
| RF Frequency | 433.92 MHz |
| Smart Protocol | Zigbee |
| Limit Type | Electronic Limit Switch |
| Charging Interface | USB Type-C |
| Charging Input | 5V⎓1A |
| PD Fast Charging (Optional) | Max. 12V⎓1.5A |
| Charging Time | < 2 hours |
| Solar Panel (Optional) | Dedicated USB Type-C, for this motor only |
Control Options
- Zigbee smart home control
- RF remote control (433.92 MHz)
- Manual setting & electronic limit adjustment
Applications
- Roller blinds
- Roller shades
- Smart window covering systems
- Residential and light commercial projects
Why Choose WM25BZ?
WM25BZ combines smart Zigbee connectivity, battery-powered flexibility, and ultra-low energy consumption in a compact 25mm tubular design. It is the ideal solution for smart roller blinds projects requiring reliable wireless control, long battery life, and easy installation without wiring.
