Star Head Motor (Head 72#)
Category: Tubular Motor
Diameter: 45mm · Torque: 10N–50N · CE/TUV/SAA/RoHS Certified
Short Product Summary
The YYGL45S Star Head Motor is a high-quality 45mm tubular motor designed for medium to heavy-duty roller shutters, blinds, and awnings. Torque options from 10N to 50N, selectable speeds (12, 15, 17 rpm), and multiple voltage choices (110V, 230V, 12V) allow maximum flexibility. The motor features a 72# star head, ensuring secure and versatile coupling. Certified CE, TUV, SAA, and RoHS, with IP44 protection, quiet operation (<45dB), and electronic limit switch compatibility, it delivers reliable and precise motion for residential and commercial applications.
Key Features
- Star head design (72#) , it is most popular design in the European countries
- Torque range: 10N – 50N
- Voltage options: 110V / 230V / 12V
- Duty cycle: S2 intermittent operation
- Quiet operation: <45 dB
- Protection: IP44
- Operating temperature: -20°C to +50°C
- Certifications: CE, TUV, SAA, RoHS
- Compatible with wall switches, remote controls, or smart controllers
Technical Specifications
| Specification | Details |
|---|---|
| Model | YYGL45S (Star Head motor 72#) |
| Diameter | 45 mm |
| Torque | 10N / 15N / 20N / 30N / 40N / 50N |
| Speed | 15 rpm / 17 rpm / 12 rpm |
| Voltage | 110V / 230V / 12V |
| Duty Cycle | S2 (intermittent) |
| Noise Level | < 45 dB |
| Protection | IP44 |
| Ambient Temperature | -20°C ~ +50°C |
| Certifications | CE, TUV, SAA, RoHS |
Applications
- Roller shutters and roller blinds
- Medium/light awnings
- Projection screens
- Light commercial rolling doors
- Any application requiring star-head coupling (72#) and adjustable torque
Advantages
- Flexible torque and speed options for different load requirements
- 72# star head ensures secure, easy installation
- Quiet, smooth operation ideal for residential and office use
- Durable construction, low maintenance
- Multiple voltage support for global markets
- Certified CE, TUV, SAA, RoHS, ensuring safety and quality compliance
Installation & Operation Notes
- Select motor torque and speed according to shutter/blind weight and size.

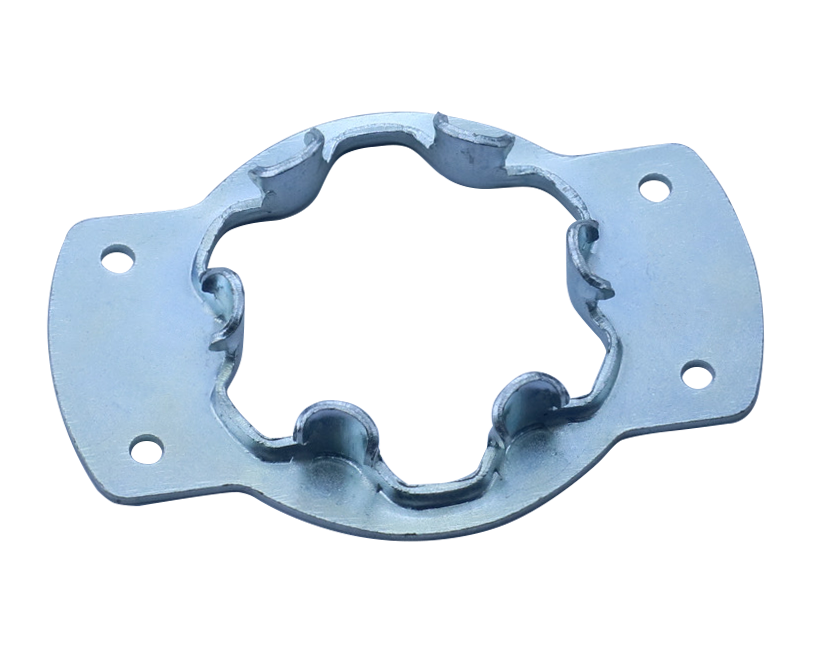

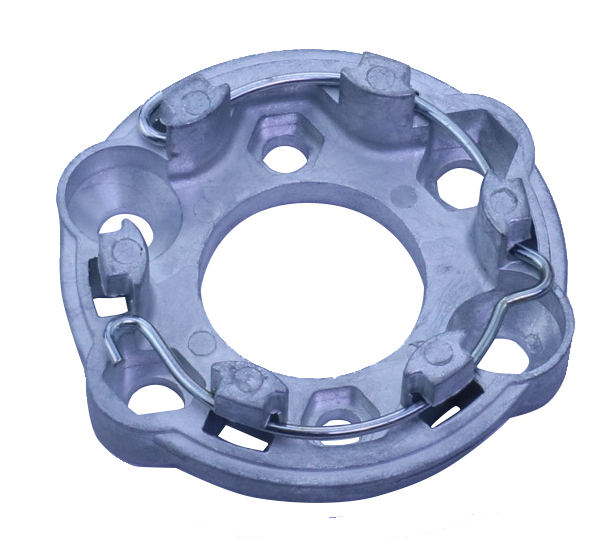

- Connect securely to the 72# star head adapter.
- Program electronic limit switch if equipped.
- Test full travel to ensure smooth and safe operation.
Ordering Information
- Models: YYGL45S-10N-72#, YYGL45S-15N-72#, YYGL45S-20N-72#, YYGL45S-30N-72#, YYGL45S-50N-72#
- Accessories: Drive adapters, wall switches, remotes
- Manufacturer: Zhejiang Walter Mech Electrical Co., Ltd.
- Contact: support@hualite.cn
