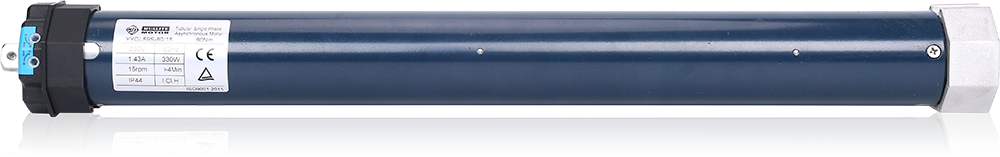

YYGL59S
Category: Tubular Motor
Discover 59mm tubular motors, a robust and reliable heavy-duty solution designed for demanding applications in roller shutters, awnings and commercial security systems. Engineered for superior performance, the 59mm tubular motor delivers high torque, quiet operation, and long-lasting durability, making it a top choice for contractors and installers handling large-scale projects.
The YYGL59S tubular motor series stands out in the 59mm tubular motor category with its excellent reliability and consistent power output. Whether you’re automating industrial roller doors, warehouse shutters, or oversized window treatments, this motor ensures smooth, efficient operation every time.
Why Choose this 59mm motor?
The YYGL59S tubular motor is built for heavy-duty use, offering:
- High Torque Capacity → Available in variants up to 140Nm, perfect for lifting heavy shutters and doors without strain.
- Quiet and Smooth Operation → Advanced mechanical design minimizes noise, ideal for residential and commercial environments.
- Durable Construction → High-quality materials ensure resistance to wear, extending service life even in frequent-use scenarios.
- Easy Installation → Standard 59mm diameter fits most roller tubes, with simple limit setting for quick setup.
- Safety Features → Includes obstacle detection, manual override, and electronic limits for secure and reliable performance.
Contractors prefer your 59mm tubular motor for its proven track record in large-scale installations, providing peace of mind with minimal maintenance requirements.
Technical data:
| Model | Torque | Speed | Voltage | Frequency | Power | Current | Running time | Protection index | Max turns | Total length |
| YYGL59S-60/15 | 60Nm | 15rpm | 230V | 50Hz | 310W | 1.35A | 4 minutes | IP44 | 22 | 600 |
| YYGL59S-80/15 | 80Nm | 15rpm | 230V | 50Hz | 330W | 1.43A | 4 minutes | IP44 | 22 | 600 |
| YYGL59S-100/12 | 100Nm | 12rpm | 230V | 50Hz | 350W | 1.52A | 4 minutes | IP44 | 22 | 600 |
| YYGL59S-120/9 | 120Nm | 9rpm | 230V | 50Hz | 360W | 1.56A | 4 minutes | IP44 | 22 | 600 |
| YYGL59S-140/9 | 140Nm | 9rpm | 230V | 50Hz | 430W | 1.86A | 4 minutes | IP44 | 22 | 600 |
Applications
These specs make the 59mm tubular motor versatile for both indoor and outdoor use, supporting heavy loads with energy-efficient operation.
The YYGL59S tubular motor excels in:
- Commercial Roller Shutters → Ideal for shops, warehouses, and security doors requiring robust lifting power.
- Automated Awnings and Blinds → Provides seamless control for large shading systems.
- Garage and Industrial Doors → Handles oversized doors with ease and reliability.
- Home Automation Upgrades → Compatible with remote controls and smart systems for modern convenience.
Its heavy-duty design ensures consistent performance in high-traffic environments, reducing downtime and repair needs.
Installation and Compatibility
Installing the YYGL59S tubular motor is straightforward:
- Measure your roller tube (compatible with standard 59mm+ tubes).
- Insert the motor and secure with adapters.
- Set upper/lower limits manually or electronically.
- Connect to power and optional remote/receiver.
Compatible with most shutter fabrics and systems, the YYGL59S tubular motor integrates easily into new or retrofit projects.
Benefits for Your Projects
- Reliability — Trusted for commercial installations with minimal failures.
- Cost-Effective — Long lifespan reduces replacement costs.
- Energy Efficient — Low power consumption during operation.
- Versatile — Suits a wide range of torque needs in the 59mm category.
Upgrade to the YYGL59S tubular motor today for superior roller shutter automation.
Order Now!
Contact us for pricing, bulk orders, or custom variants. Reliable shipping worldwide. Transform your projects with the power and precision of Walter tubular motor!
