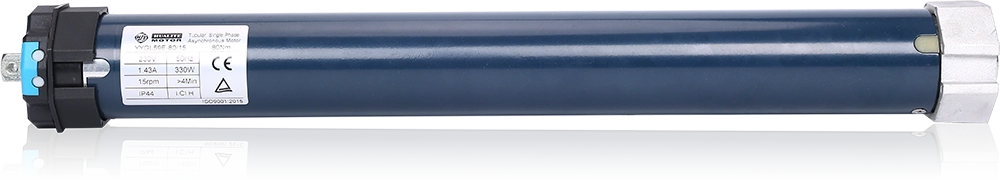

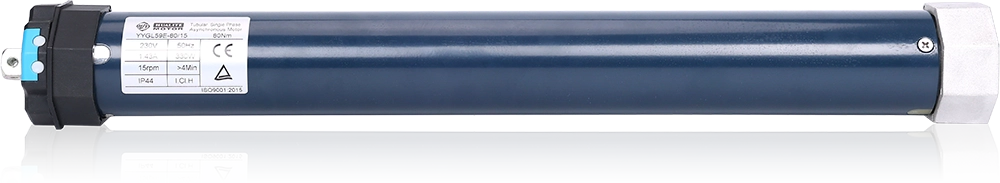

YYGL59P
Electronic Limit Switch Parallel Tubular Motor
Reliable Parallel Tubular Motor with Precise Electronic Limits
Category: Tubular Motor
The YYGL59P Electronic Limit Switch Parallel Motor is designed for rolling shutters, rolling doors, and large-area shading systems that require stable parallel wiring, accurate limit control, and long-term reliability. Built on WALTER’s proven tubular motor platform, it combines electronic limit technology with robust mechanical construction to ensure consistent performance in demanding environments.
Technical data:
| Model | Torque | Speed | Voltage | Frequency | Power | Current | Running time | Protection index | Max turns | Total length |
| YYGL59P-60/15 | 60Nm | 15rpm | 230V | 50Hz | 310W | 1.35A | 4 minutes | IP44 | 22 | 700 |
| YYGL59P -80/15 | 80Nm | 15rpm | 230V | 50Hz | 330W | 1.43A | 4 minutes | IP44 | 22 | 700 |
| YYGL59P-100/12 | 100Nm | 12rpm | 230V | 50Hz | 350W | 1.52A | 4 minutes | IP44 | 22 | 700 |
| YYGL59P-120/9 | 120Nm | 9rpm | 230V | 50Hz | 360W | 1.56A | 4 minutes | IP44 | 22 | 700 |
| YYGL59P-140/9 | 140Nm | 9rpm | 230V | 50Hz | 430W | 1.86A | 4 minutes | IP44 | 22 | 700 |
Key Features
Electronic Limit Switch Technology
The YYGL59P uses an advanced electronic limit system to provide precise upper and lower positioning. Compared with mechanical limit switches, electronic limits offer higher accuracy, improved repeatability, and reduced wear over time.
Parallel Wiring Design
This model supports parallel connection, making it ideal for projects where multiple motors need to be wired efficiently. Parallel wiring simplifies installation, reduces labor time, and ensures stable operation in large-scale applications.
Stable and Powerful Performance
Designed for rolling shutter and rolling door applications, the YYGL59P tubular motor delivers smooth start-up, steady operation, and reliable stopping at preset positions, even under frequent daily use.
Durable Construction
High-quality internal components, reinforced motor housing, and optimized heat dissipation ensure long service life and dependable operation in both residential and commercial installations.
Typical Applications
- Rolling shutters
- Rolling doors
- Industrial doors
- Commercial shading systems
- Security shutter solutions
The YYGL59P is especially suitable for installations requiring synchronized operation and consistent limit accuracy.
Technical Highlights
- Motor type: Tubular motor with electronic limit switch
- Control method: Wired control
- Wiring system: Parallel connection
- Limit setting: Electronic upper and lower limits
- Application: Rolling shutter / rolling door systems
- Duty cycle: Designed for frequent operation
(For more detailed technical specifications available upon request.)
Advantages of Electronic Limit Control
- Higher positioning accuracy
- Reduced mechanical wear
- Stable limit memory
- Easier adjustment compared to traditional mechanical limits
- Improved reliability over long-term use
Quality and Manufacturing
Every YYGL59P motor is manufactured under WALTER’s strict quality management system. Each unit undergoes comprehensive testing, including electrical safety checks, load performance testing, and limit accuracy verification before shipment. This ensures consistent quality and dependable field performance.
Why Choose WALTER YYGL59P
- Proven tubular motor expertise
- Reliable electronic limit technology
- Efficient parallel wiring solution
- Consistent quality and supply stability
- Professional technical support
WALTER focuses on long-term partnerships by delivering products that meet real-world application requirements and international market expectations.
Contact Us
Looking for a dependable electronic limit switch parallel tubular motor for your next project?
Contact WALTER for technical details, customization options, and commercial support.
