YYGL59E — With Electronic Limit Switch
Category: Tubular Motor
Product Overview

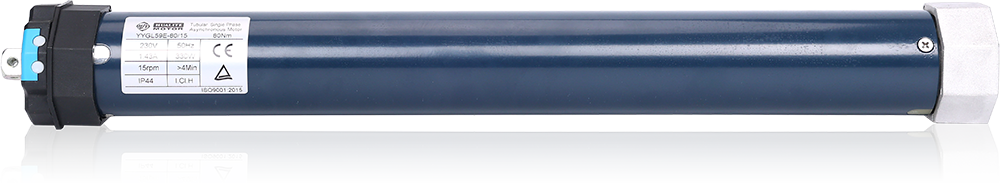

The YYGL59E tubular motor is a high-performance AC motor from the YYGL series, designed primarily for heavy-duty applications such as roller shutters, garage doors, awnings, and large roller blinds. This 59mm diameter model features an electronic limit switch for precise and reliable positioning, offering superior accuracy compared to mechanical limits. It ensures smooth, quiet operation and is ideal for both residential and commercial automation systems.
Electronic limit switches use advanced circuitry to memorize upper and lower stop positions, allowing for easy programming, multiple limit settings, and features like obstacle detection or rebound in some variants.
Technical data:

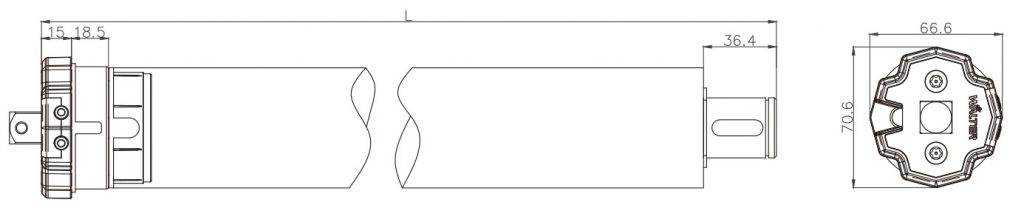

| Model | Torque | Speed | Voltage | Frequency | Power | Current | Running time | Protection index | Max turns | Total length |
| YYGL59E-60/15 | 60Nm | 15rpm | 230V | 50Hz | 310W | 1.35A | 4 minutes | IP44 | 22 | 700 |
| YYGL59E -80/15 | 80Nm | 15rpm | 230V | 50Hz | 330W | 1.43A | 4 minutes | IP44 | 22 | 700 |
| YYGL59E-100/12 | 100Nm | 12rpm | 230V | 50Hz | 350W | 1.52A | 4 minutes | IP44 | 22 | 700 |
| YYGL59E-120/9 | 120Nm | 9rpm | 230V | 50Hz | 360W | 1.56A | 4 minutes | IP44 | 22 | 700 |
| YYGL59E-140/9 | 140Nm | 9rpm | 230V | 50Hz | 430W | 1.86A | 4 minutes | IP44 | 22 | 700 |
Key Features
- Diameter: 59mm
- Compatible Shafts: Primarily designed for 70mm octagonal shafts (standard for 59mm motors); not suitable for 60mm octagonal shafts without custom modifications – adapters typically start at 70mm
- Limit System: Electronic limit switch – high precision with programmable memory, supporting intermediate positions and simple setup
- Torque Range: 80–140 Nm (variant-dependent; capable of lifting heavy loads up to 200+ kg)
- Speed: 9–15 RPM (optimized for controlled, powerful operation)
- Quiet Operation: Low noise with built-in thermal protection
- Power Supply: AC 220–240V / 50Hz (some variants available in 110V)
- Additional Functions: Obstacle detection with rebound, dot-move mode; parallel connection supported only on specific variants like YYGL59P
- Durability: Long-life, maintenance-free design
Advantages of Electronic Limit Switch
- Precision: Sensor-based accuracy for exact positioning
- Ease of Programming: Limits set via buttons or remote – no mechanical adjustments required
- Safety Features: Automatic stop/reverse on obstacles
- Flexibility: Multiple stop points and smooth operation
(Mechanical limits rely on manual screws for basic up/down stops.)
Installation Notes
The motor inserts into the roller tube using crown and drive adapters suited to the shaft size (commonly 70mm octagonal).
Basic Steps (always consult the specific manual):
- Fit motor with correct adapters (e.g., 70mm octagonal crown and wheel).
- Secure brackets and wire: brown (up), blue (down), black (common), green-yellow (ground).
- Power on and enter programming mode.
- Cycle to set and save upper/lower limits.
- Test operation, safety rebound, and noise levels.
Professional installation is recommended.
Applications
- Heavy roller shutters and security doors
- Garage roll-up doors
- Large exterior awnings and screens
- Integration with wired controls (radio versions in related models)
For exact specs, manuals, or variants (e.g., YYGL59P for parallel wiring or radio models), refer to suppliers like Hualite or similar YYGL manufacturers. Manual override available on select models.
