YYGL45SD

Category: Tubular Motor

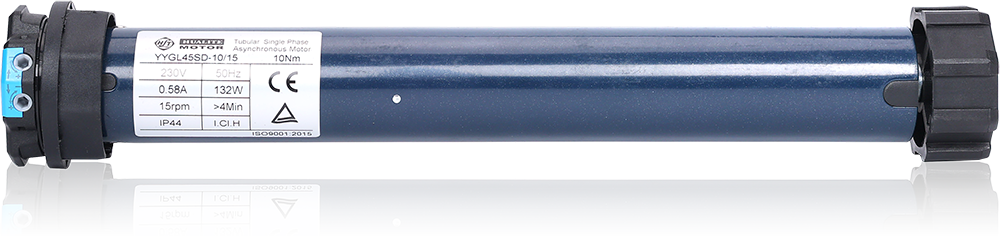

Super Short Tubular Motor for Narrow Windows

Model	Torque	Speed	Voltage	Frequency	Power	Current	Running time	Protection index	Max turns	Total length
YYGL45SD-10/15	10Nm	15rpm	230V	50Hz	132W	0.58A	4 minutes	IP44	22/42	370
YYGL45SD-10/15	10Nm	15rpm	230V	50Hz	132W	0.62A	4 minutes	IP44	22/42	345

The Supper short Motor is a specialized, ultra-compact version of the Standard tubular motor. Designed specifically for installations with limited space, the Supper short Motor delivers the same reliable performance as the standard motor but in a much shorter, more compact form. This makes it the ideal choice for motorizing roller blinds in narrow window frames where traditional motors won’t fit.

Why Choose the YYGL45SD Motor?

The YYGL45SD tubular motor provides a high-performance solution for spaces where conventional motors are too large. Here’s why this motor is a great choice:

1. Space-Saving Design
   Its super-short length allows the YYGL45SD to fit into tight spaces where regular motors may not be suitable. This makes it the perfect solution for narrow windows and restricted installations.
2. Reliable and Efficient
   Despite its compact size, the YYGL45SD motor offers the same reliable performance as the YYGL45S. It operates smoothly and quietly, ensuring long-lasting functionality even in high-use environments.
3. Quiet Operation
   With its low-noise design, Our supper short tubular motor ensures quiet operation, making it ideal for living spaces, offices, and bedrooms where noise can be a concern.
4. Energy Efficiency
   This motor is energy-efficient, helping reduce electricity consumption while still offering strong, consistent performance. Whether you’re managing light levels in a home or commercial setting, it helps improve energy efficiency.
5. Durable and Long-Lasting
   The YYGL45SD motor is built for durability. Designed with high-quality materials, it ensures reliable operation and extends the lifespan of your window coverings.
6. Simple Installation
   The compact design of the YYGL45SD makes it easy to install in small spaces or when retrofitting existing roller blinds. Its small form factor ensures a hassle-free installation process.

Key Features of the YYGL45SD Super Short Tubular Motor

• Ultra-Compact Size: Ideal for narrow windows and limited spaces, the YYGL45SD fits where traditional motors cannot.
• Low-Noise Performance: Enjoy quiet and smooth operation with minimal vibrations.
• High Durability: Built to last, this motor is designed for long-term reliability and performance.
• Energy Efficient: Helps reduce electricity usage while maintaining high efficiency.
• Flexible Applications: Perfect for residential, commercial, and retrofit applications.

Applications:

Thanks to its compact design, the YYGL45SD motor is perfect for applications where space is limited. It is especially useful in:

• Residential Homes: Ideal for narrow window frames in homes with tight spaces.
• Commercial Environments: Use in offices, stores, and other commercial settings where aesthetic and functionality are essential.
• Retrofit Projects: Perfect for replacing older motors in spaces where standard motors are too large.
• Small Rooms: Whether in a small apartment or a room with restricted window space, our supper short tubular motor fits seamlessly.

Comparing the YYGL45SD and YYGL45S

While both motors share similar features and performance, the main difference is the size. The YYGL45SD is a shortened version of the YYGL45S, designed specifically for installations in narrow or space-constrained areas.

• YYGL45S: total length from 450mm Standard tubular motor for regular window installations.

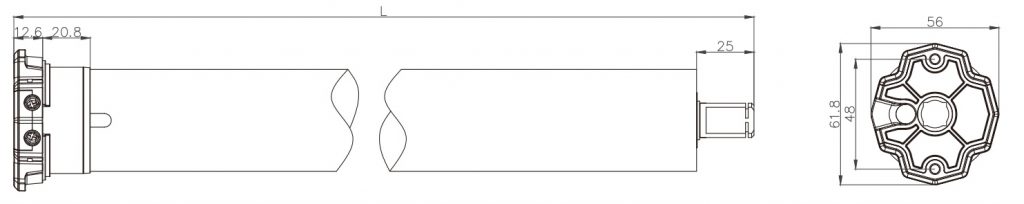

• YYGL45SD: Min. length 345mm, Compact, super-short tubular motor for narrow windows and tight spaces.

Why Choose Zhejiang Walter?

Zhejiang Walter Mech Electrical Co., Ltd. is a trusted manufacturer of high-quality tubular motors, including the YYGL45SD. Our motors are designed to provide reliable, efficient performance in all types of motorized window covering applications. We offer:

• Certified Quality: Our motors meet CE, TUV, SAA, ISO, and RoHS standards, ensuring the highest quality and safety.
• Expert Support: Our team provides guidance in choosing the right motor and ensuring proper installation.
• Customization: We offer tailored solutions to meet the specific needs of your project.

Conclusion

For installations in narrow or constrained spaces, the YYGL45SD tubular motor provides a perfect solution. With its compact size, quiet operation, and reliable performance, this motor ensures smooth automation of roller blinds in spaces where traditional motors can’t fit. Upgrade your window coverings with our supper short tubular motor and enjoy modern, energy-efficient convenience.
