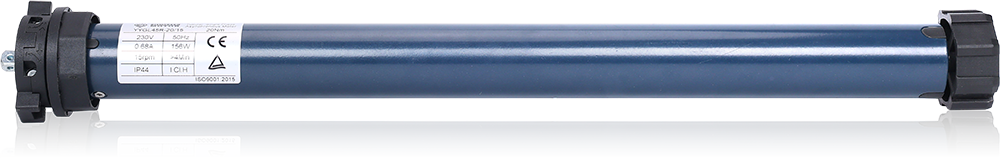

YYGL45R Tubular Motor with Built-in Receiver
Category: Tubular Motor
The YYGL45R tubular motor is a powerful and reliable solution developed for motorized roller blinds, roller shutters, and related shading systems. Featuring a built-in radio receiver and a mechanical limit switch, it offers stable operation, precise positioning, and simplified installation for both residential and commercial applications.
With the integrated radio receiver, no external control box is required, significantly reducing wiring complexity and installation time. The motor is compatible with standard remote controls and supports both individual and centralized control, making it suitable for modern automation and smart shading projects.
A mechanical limit switch ensures accurate and repeatable upper and lower stop positions. This design provides long-term reliability and consistent performance, even in high-frequency or heavy-duty usage environments where durability and precision are essential.
Designed with a compact 45 mm tubular diameter, the motor fits most standard roller tubes. Multiple torque options ranging from 10 Nm to 50 Nm allow flexible application, from lightweight roller blinds to heavier roller shutters. Quiet operation below 45 dB, IP44 protection, and robust internal components ensure dependable daily use in indoor and semi-outdoor environments.
To provide long-term confidence, this motor is supplied with a 5-year limited warranty. It complies with major international standards and is CE, TÜV, SAA, and RoHS certified, meeting global safety, quality, and environmental requirements.
Key Features
- Built-in radio receiver for wireless remote control
- Mechanical limit switch for precise and reliable positioning
- Compatible with roller blinds, roller shutters, and shading systems
- Compact 45 mm diameter for easy integration with standard tubes
- Quiet operation with sound level below 45 dB
- IP44 protection for stable performance in daily use
- Wide torque range for residential and commercial applications
- 5-year limited warranty
- CE, TÜV, SAA, and RoHS certified
Technical data:
| Model | Torque | Speed | Voltage | Frequency | Power | Current | Running time | Protection index | Max turns | Total length |
| YYGL45R-10/15 | 10Nm | 15rpm | 230V | 50Hz | 132W | 0.58A | 4 minutes | IP44 | 22/42 | 560 |
| YYGL45R-15/17 | 15Nm | 17rpm | 230V | 50Hz | 143W | 0.62A | 4 minutes | IP44 | 22/42 | 560 |
| YYGL45R-20/15 | 20Nm | 15rpm | 230V | 50Hz | 156W | 0.68A | 4 minutes | IP44 | 22/42 | 560 |
| YYGL45R-30/15 | 30Nm | 15rpm | 230V | 50Hz | 204W | 0.9A | 4 minutes | IP44 | 22/42 | 590 |
| YYGL45R-40/15 | 40Nm | 15rpm | 230V | 50Hz | 218W | 0.95 | 4 minutes | IP44 | 22/42 | 630 |
| YYGL45R-50/12 | 50Nm | 12rpm | 230V | 50Hz | 232W | 1.01 | 4 minutes | IP44 | 22/42 | 630 |
The YYGL45R series is the perfect cost-effective choice for manufacturers, installers, and smart home projects seeking an integrated, mechanically reliable motor. Contact us today for specifications, pricing, or OEM options!
