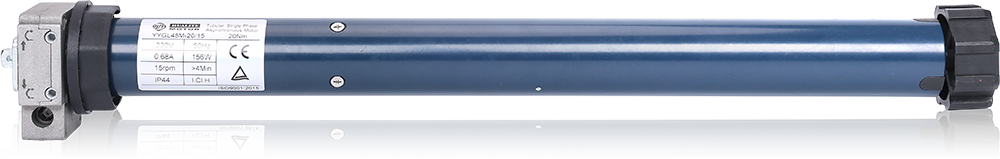

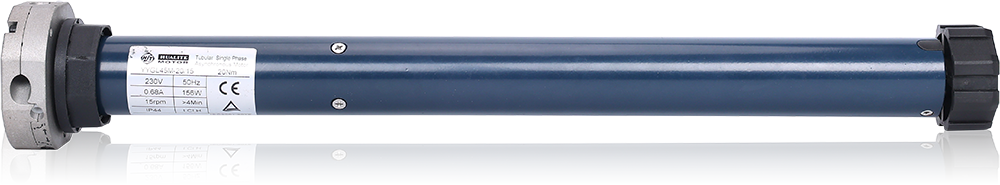

YYGL45M Tubular Motor with Manual Override
Category: Tubular Motor
Product Overview
The YYGL45M is a high-quality 45mm tubular motor designed for reliable automation of roller shutters, roller blinds, zip screens, and retractable awnings. Featuring a built-in manual override function, this motor ensures uninterrupted operation even during power outages, allowing users to manually raise or lower shades, blinds, or awnings with ease using a crank handle.
Ideal for residential and commercial applications, the YYGL45M combines quiet performance, durability, and safety features to provide seamless control and peace of mind.
Key Features
- Manual Override Function: Essential for emergency situations. In the event of a power failure, the manual override allows effortless manual operation of roller shutters, blinds, or awnings, ensuring accessibility and security at all times.
- Mechanical Limit Switches: Precise and adjustable upper/lower limits for accurate positioning and protection against over-travel.
- Quiet Operation: Low noise level (<45dB) for minimal disturbance in indoor or outdoor settings.
- Robust Construction: IP44 protection rating, suitable for indoor and outdoor use. Insulation class F for enhanced thermal resistance.
- Easy Installation: Compact design fits standard octagonal tubes (compatible with 60mm/70mm tubes). Includes mechanical limit adjustment for simple setup.
- Wide Torque Range: Available in various models from 10Nm to 50Nm to suit different sizes and weights of shutters/blinds/awnings.

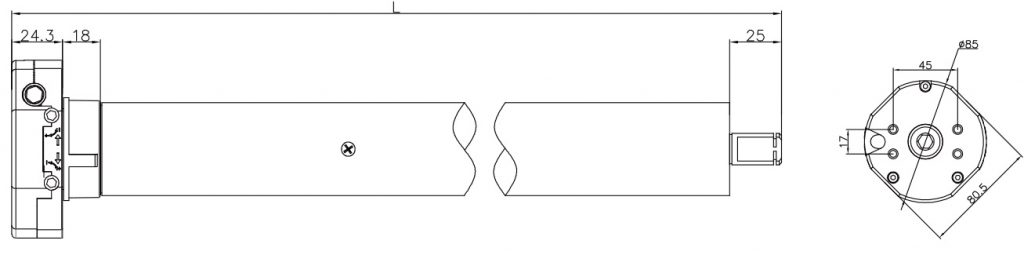

Technical Specifications
| Model | Torque | Speed | Voltage | Frequency | Power | Current | Running time | Protection index | Max turns | Total length |
| YYGL45M-20/15 | 20Nm | 15rpm | 230V | 50Hz | 156W | 0.68A | 4 minutes | IP44 | 22 | 540 |
| YYGL45M-30/15 | 30Nm | 15rpm | 230V | 50Hz | 204W | 0.9A | 4 minutes | IP44 | 22 | 570 |
| YYGL45M-40/15 | 40Nm | 15rpm | 230V | 50Hz | 218W | 0.95 | 4 minutes | IP44 | 22 | 590 |
| YYGL45M-50/12 | 50Nm | 12rpm | 230V | 50Hz | 232W | 1.01 | 4 minutes | IP44 | 22 | 590 |
Applications
- Roller Shutters & Security Blinds: Provides automated control with manual backup for homes and shops.
- Zip Screen Blinds & Outdoor Shades: Perfect for exterior sun protection systems.
- Retractable Awnings: Smooth operation for patios and terraces.
- Projection Screens & Garage Doors: Versatile for various shading and screening needs.
Why Choose YYGL45M?
In regions prone to power interruptions, the manual override feature makes the YYGL45M an indispensable choice for reliable shading solutions. It offers the perfect balance of automation convenience and manual reliability, ensuring your window coverings remain functional no matter what.
For custom torque specifications, OEM branding, or bulk inquiries, contact us today!
Manufactured by a leading tubular motor specialist with over 20 years of experience in high-quality, export-ready products.
