YYGL45E

Category：Tubular Motor

– Electronic Limit Switch for Reliable Roller Shutter Automation

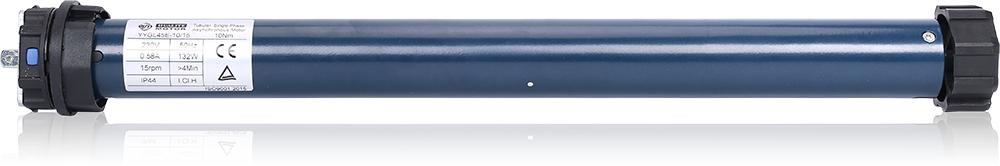

Product Image

The YYGL45E tubular motor is a high-precision electronic limit switch motor designed for roller shutters, blinds, and similar shading systems. With its built-in electronic limit switch, this motor ensures accurate upper and lower stop positions, providing reliable, repeatable operation for both residential and commercial installations. It also features obstacle detection and overload protection, making it safe to use even in challenging conditions, such as frozen or stuck shutters in winter.

Equipped with a remote control, the motor allows easy operation and effortless integration into smart home systems. The motor’s overload protection prevents damage to the roller shutter, ensuring longevity and reducing maintenance costs. Its low-noise design and IP44 protection rating make it suitable for both indoor and semi-outdoor applications.

Key Features of YYGL45E Tubular Motor

• Electronic Limit Switch: Simple travel setup and high repeat positioning accuracy.
• Obstacle Detection: Reverses automatically when meeting resistance, preventing damage.
• Overload Protection: Protects motor and shutter during freezing or heavy load conditions.
• Remote Control: Convenient operation and easy integration with smart home systems.
• Compact 45mm Diameter: Fits standard roller tubes with multiple torque options.
• Quiet Operation: Less than 45dB, ideal for residential and commercial spaces.
• IP44 Protection: Resistant to dust and splashing water.
• Durable Construction: Long-lasting performance with minimal maintenance.

Applications

The YYGL45E tubular motor is perfect for a wide range of environments:

• Residential Homes: Automated roller shutters for bedrooms, living rooms, and sunrooms.
• Offices and Commercial Spaces: Provides precise light control and privacy for conference rooms or storefronts.
• Smart Home Integration: Works seamlessly with home automation systems, enabling scheduling and remote operation.
• Seasonal Protection: Ensures shutters are safe during winter freezes or stormy weather.

Advantages Over Mechanical Limit Motors

Compared to traditional mechanical limit motors, the YYGL45E offers:

• Higher travel accuracy and repeatable positioning.
• Automatic obstacle detection and overload protection.
• Remote control convenience without additional wiring.
• Reduced maintenance and longer lifespan.

Technical Specifications

Model	Torque	Speed	Voltage	Frequency	Power	Current	Running time	Protection index	Max turns	Total length
YYGL45E-10/15	10Nm	15rpm	230V	50Hz	132W	0.58A	4 minutes	IP44	22/42	530
YYGL45E-15/17	15Nm	17rpm	230V	50Hz	143W	0.62A	4 minutes	IP44	22/42	530
YYGL45E-20/15	20Nm	15rpm	230V	50Hz	156W	0.68A	4 minutes	IP44	22/42	530
YYGL45E-30/15	30Nm	15rpm	230V	50Hz	204W	0.9A	4 minutes	IP44	22/42	560
YYGL45E-40/15	40Nm	15rpm	230V	50Hz	218W	0.95	4 minutes	IP44	22/42	580
YYGL45E-50/12	50Nm	12rpm	230V	50Hz	232W	1.01	4 minutes	IP44	22/42	580

Frequently Asked Questions (FAQ)

Q1: What wind speed can YYGL45E tubular motors withstand?
A1: The motor is designed for roller shutters with Class 6 wind resistance, suitable for most residential and commercial installations.

Q2: How do I integrate YYGL45E with smart home systems?
A2: The motor works with standard RF remotes and can be connected to Zigbee, Wi-Fi, or smart relay modules for automated scheduling.

Q3: How does the obstacle detection work?
A3: If the shutter encounters resistance, the motor automatically reverses to prevent damage.

Q4: Can it operate in winter conditions with frozen shutters?
A4: Yes, the motor’s overload protection prevents mechanical damage during ice or heavy load conditions.

Q5: Is installation difficult for DIY users?
A5: No, the 45mm tubular design fits standard roller tubes, and the electronic limit switch allows easy travel setup.

---
