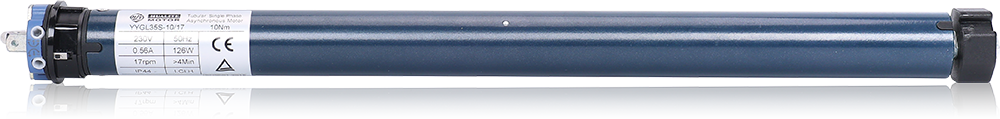

YYGL35S
Category: Tubular Motor
Our 35mm tubular motor provides reliable drive solutions for roller shutters and shading systems. Designed with stability and long service life in mind, it is compatible with common controllers and remote systems, making it ideal for residential and light commercial use.
Built with high-quality components, provides stable torque, long life, and consistent operation, ensuring effortless movement. Its quiet operation makes it ideal for residential and office environments where comfort and low noise are essential.
Applications:
- Smart home and building automation projects
- Residential roller shutters and blinds (bedroom, living room, kitchen)
- Small commercial shading equipment (shops, offices)
- Lightweight indoor venetian blinds and blackout systems
Key Features
- Quiet Operation – Noise level ≤45 dB for comfort
- Compact 35mm Design – Fits small to medium tubes
- Reliable Torque – Options from 3Nm to 13Nm
- Durable Construction – Long service life with premium components
- Flexible Control Options – Compatible with wall switches, remote controls, and smart home systems
- TUV CE & RoHS Certified – Safety and quality assured
Technical data:
| Model | Torque | Speed | Voltage | Frequency | Power | Current | Running time |
Protection index |
Max turns |
Total length |
| YYGL35S-3/28 | 3Nm | 28rpm | 230V | 50Hz | 95W | 0.41A | 4 minutes | IP44 | 39 | 510 |
| YYGL35S-6/28 | 6Nm | 28rpm | 230V | 50Hz | 115W | 0.56A | 4 minutes | IP44 | 39 | 510 |
| YYGL35S-10/17 | 10Nm | 17rpm | 230V | 50Hz | 126W | 0.56A | 4 minutes | IP44 | 39 | 510 |
| YYGL35S-13/14 | 13Nm | 14rpm | 230V | 50Hz | 126W | 0.56A | 4 minutes | IP44 | 39 | 510 |
FAQs
What type of motor is the YYGL35S?
The YYGL35S is a 35mm diameter tubular motor with mechanical limits, designed for reliable operation in roller shutters, blinds, and shading systems. It offers manual limit adjustment via a screw mechanism, making it ideal for standard setups without built-in receivers.
How do I set the mechanical limits on the YYGL35S?
Use the included limit adjustment tool or screwdriver to turn the limit screws on the motor head. Run the motor to the desired upper/lower position, then adjust the screws clockwise/counterclockwise to lock the stops. Always test in both directions to avoid over-travel, and refer to the manual for precise steps.
What are common problems like overheating or noise with the YYGL35S?
Overheating can occur from overload or poor ventilation—ensure the load matches the torque (e.g., don’t exceed 13Nm capacity). Noise (≤45 dB normal) may indicate misalignment; check tube adapters and lubrication. If issues persist, inspect wiring or upgrade for heavier applications.
How do I choose the right torque and model for the YYGL35S?
Available models include YYGL35S-3/28 (3Nm/28rpm), YYGL35S-6/28 (6Nm/28rpm), YYGL35S-10/17 (10Nm/17rpm), and YYGL35S-13/14 (13Nm/14rpm). Select based on shutter weight: 3–6Nm for lightweight blinds, 10–13Nm for medium/heavy. Factor in tube diameter (minimum 38mm) and total load for optimal performance.
What are the installation requirements for the YYGL35S?

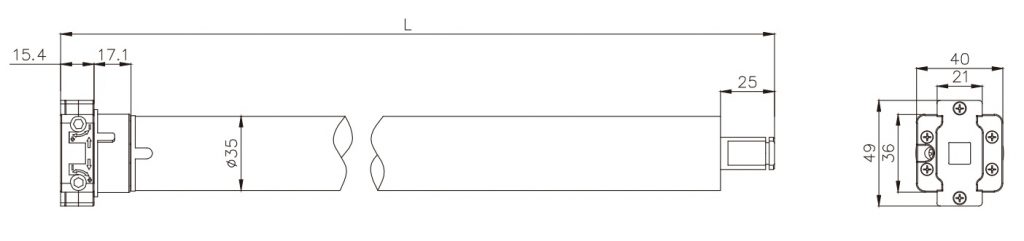

The motor has a total length of 510mm and 35mm diameter. Secure it inside the roller tube using compatible crown and drive adapters. Connect to a 230V/50Hz power supply with proper wiring (4 wires for switch control). Professional installation is recommended to ensure alignment and avoid electrical issues.
How noisy is the YYGL35S during operation?
It operates at ≤45 dB, which is quiet enough for residential or office use. If vibration or unusual noise occurs, verify tube compatibility, check for loose fittings, or ensure the motor isn’t overloaded—common fixes from user troubleshooting.
How durable is the YYGL35S and what is its continuous running time?
With a 4-minute continuous running time and built-in thermal protection, it’s designed for tens of thousands of cycles. Constructed from high-quality steel and copper wiring, it handles up to 39 max turns with IP44 protection against dust and splashes for long-term reliability.
What are the power consumption and voltage requirements for the YYGL35S?
It runs on 230V/50Hz, with power from 95W to 126W depending on the model (current 0.41A–0.56A). Ensure stable power to prevent response delays; mismatched voltage can cause failures, so use a compatible switch or timer for control.
Is the YYGL35S compatible with smart home systems or remote controls?
As a standard mechanical limit motor, it doesn’t have a built-in receiver but can integrate with external RF receivers or smart modules (e.g., via wall switches or Z-Wave adapters). For full automation, add a compatible controller to enable remote or app-based operation.
What certifications and protection does the YYGL35S have?
It holds TUV, CE, SAA and RoHS certifications for safety and environmental standards. With IP44 rating, it’s splash-proof and dust-resistant, suitable for indoor/semi-outdoor use—addressing common concerns about durability in humid environments.
