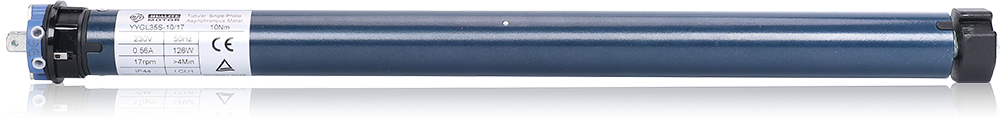

35MM Mechanical Limit switch Motor

45MM Mechanical Limit switch Motor

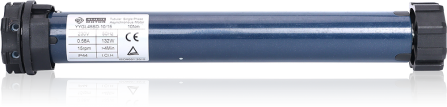

59MM Mechanical Limit switch Motor

When it comes to roller shutters, blinds, and awnings, mechanical limit switch motors remain one of the most trusted and time-tested solutions. These motors are known for their simple structure, stable operation, and long service life — making them ideal for both residential and commercial shading systems.

What is a Mechanical Limit Switch Motor?

A mechanical limit switch motor is a tubular motor that uses physical adjustment screws to define the up and down limits of the curtain or shutter. Unlike electronic limit motors, which rely on internal sensors and memory chips, the mechanical version uses a built-in gear mechanism that stops rotation when the set position is reached.

This structure makes it easy to install and highly reliable, even in environments with unstable voltage or frequent power interruptions.

Key Features and Benefits

1. Simple Limit Adjustment
   Using two manual screws, the installer can easily set the upper and lower limits of the shutter. No programming tools or remotes are required.
2. Stable and Durable Design
   The mechanical limit system uses gears and micro-switches, ensuring consistent performance over years of operation.
3. Wide Compatibility
   These motors can be used with a variety of shading systems — including roller shutters, roller blinds, projection screens, and garage doors.
4. Cost-Effective Solution
   Compared with electronic or radio-controlled motors, the mechanical limit switch motor is an economical choice that provides essential automation without complex control systems.
5. Manual Override Option (Optional)
   Some models include a manual crank function, allowing users to operate the system even when power is unavailable.

---

Applications

Mechanical limit switch tubular motors are widely used in:

• Residential roller shutters for home security and privacy.
• Commercial shopfront shutters for safety and energy saving.
• Projection screens and industrial curtains.
• Window blinds and small awnings.

These motors are especially suitable for customers seeking reliable automation without needing advanced smart controls.

---

How the Mechanical Limit System Works

The working principle is straightforward:
When the motor rotates, it drives the tube and curtain. Once the curtain reaches the top or bottom limit, a cam inside the motor triggers the switch and stops the rotation. Installers can fine-tune the limit by turning the UP or DOWN screw on the motor head.

Because of its mechanical precision, the limit does not drift over time — ensuring stable performance year after year.

---

Models and Torque Options

Walter offers a range of mechanical limit switch motors with different torque levels to meet specific installation needs:

• WM25MS: Compact motor for small blinds and lightweight shades.
• WM35MS: Medium-size motor, 10Nm torque, suitable for standard roller shutters.
• WM45MS: Heavy-duty motor, 20Nm torque, ideal for larger blinds and outdoor awnings.

All models are designed with high-quality internal gears, thermal protection, and quiet operation to ensure long-lasting durability.

---

Why Choose Walter Mechanical Limit Motors

Walter tubular motors are built to deliver precision, stability, and value. Our mechanical limit motors combine traditional reliability with modern design — ensuring smooth and safe operation for years.

Each motor is tested for performance, torque accuracy, and safety before delivery. Combined with Walter’s professional technical support, installation and after-sales service become simple and worry-free.

---

Conclusion

If you are looking for a proven, cost-effective tubular motor for roller shutters or blinds, the mechanical limit switch motor remains the perfect choice. Its simplicity, stability, and durability make it an industry classic — suitable for both residential and commercial applications.

Walter provides a full series of mechanical limit motors with torque options from 6Nm to 50Nm.
Contact us today to find the ideal model for your shading project.
