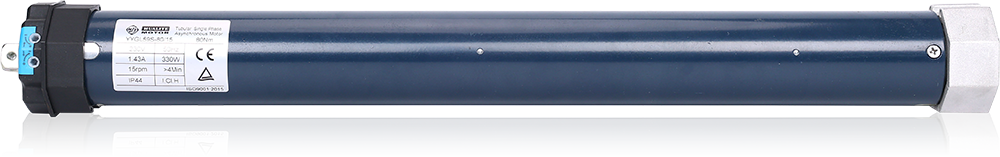

YYGL59S Tubular Motor – Quiet & Reliable Motor for Roller Shutters and Roller Blinds
Product Overview
The YYGL59S tubular motor is a medium-duty 59mm motor designed for smooth, quiet, and efficient automation of roller shutters and heavy duty roller blinds. It provides stable torque and reliable operation for residential and commercial rolling door and shading systems.
Built with high-quality components and CE certification, the YYGL59S ensures long-lasting durability and consistent performance. It supports multiple control options, including wall switches, remote control, and smart home automation, offering convenience and low maintenance.
Key Features (H2)
- Quiet Operation – Noise level ≤55 dB for comfortable environments
- Medium-Duty Torque – Suitable for medium-sized roller shutters and heavy duty blinds
- Durable Construction – High-quality components ensure long service life
- 59mm Tube Diameter – Fits standard medium-sized tubes 70mm octagonal tube, 89mm round tube.
- Flexible Control Options – Wall switch, remote control, smart home compatible
- CE & RoHS Certified – Guaranteed safety and quality
Technical Specifications (H2)
| Parameter | Value |
|---|---|
| Model | YYGL59S |
| Tube Diameter | 59 mm |
| Motor Type | AC Tubular Motor |
| Voltage | 230V / 50Hz (optional 110V) |
| Torque Options | 60Nm / 80Nm / 100Nm / 120Nm / 140Nm |
| Speed | 9 rpm / 12 rpm / 15rpm |
| Noise Level | ≤55 dB |
| Protection Class | IP44 |
| Control Options | Wall switch, Remote control, Smart home compatible |
| Limit Switch Type | Mechanical / Electronic |
| Max Roller Blind Weight | Up to 140 kg |
| Operating Temperature | -20°C to +50°C |
| Certifications | CE, RoHS |
Applications (H2)
The YYGL59S tubular motor is ideal for roller shutters and roller blinds in:
- Residential homes and apartments
- Offices and commercial spaces
- Awnings and sun shading systems
- Smart home automated window systems
Its quiet, stable operation ensures smooth and reliable movement for medium-sized roller shutters and blinds, enhancing comfort and convenience.
FAQ
Q1: What is the maximum load of YYGL59S tubular motor?
A1: The YYGL59S tubular motor supports a maximum load of 160 kg, making it suitable for heavy-duty roller shutters, garage doors, awnings, and pergolas.
Q2: What torque options are available for YYGL59S?
A2: Torque options include 60Nm, 80Nm, 100Nm, 120Nm, and 140Nm, allowing it to handle medium to large-scale applications.
Q3: What is the noise level of the motor?
A3: The motor operates quietly with a noise level ≤55 dB, ideal for residential, office, and commercial installations.
Q4: What type of limit switch does YYGL59S use?
A4: It uses a standard mechanical travel control limit switch, ensuring precise and reliable operation of roller shutters, garage doors, awnings, and pergolas.
Q5: What control options are compatible with YYGL59S?
A5: The motor is compatible with wall switches, remote control, and smart home automation systems.
How to select your tubular motor?
1. Determine the Application Type
- Roller Shutters: Heavy-duty motors are needed for security shutters.
- Roller Blinds / Curtains: Lighter motors suffice for residential or decorative uses.
- Awnings or Projection Screens: Consider torque, speed, and control options.
2. Calculate the Required Torque
Torque is the rotational force the motor can provide, usually measured in Nm (Newton-meters). To calculate:
- Measure the weight of the roller shutter.
- Determine the tube diameter and material.
- Use torque charts provided by the manufacturer or calculate torque:
Required Torque (Nm)≈{Roller shutter Weight (kg) × Roller Radius (m) × 9.81}÷ Efficiency Factor
- Efficiency factor: Usually 0.8–1.2 depending on type of shutter and friction.
3. Choose the Motor Diameter
- Standard diameters: 35mm, 45mm, 59mm, 92mm, etc.
- Ensure the motor fits the roller tube: the motor’s diameter must match the inner diameter of the tube.
4. Select Voltage and Speed
- Voltage: 230V AC for mains; 12V, 24V DC for battery-operated motors.110Vac optional
- Speed: Low RPM (revolutions per minute) for heavy shutters; high RPM for lightweight blinds.
- Common speeds: 6–20 RPM, adjustable depending on the application.
5. Decide on Control Type
- Manual Switch: Simple up/down control.
- Remote Control / RF: Wireless control for convenience.
- Smart Home Integration: Compatible with home automation systems like Zigbee, Z-Wave, or Wi-Fi.
6. Consider Additional Features
- End Limits / Mechanical or Electronic: Prevent over-rolling.
- Overload Protection: Protects motor from damage due to heavy loads.
- Quiet Operation: Important for residential settings.
- Battery Backup: For power outages.
7. Check Installation and Maintenance Requirements
- Ensure space allows for motor and tube installation.
- Look for motors with easy maintenance or service options.
