The Difference Between Roller Shutter Tubular Motor and Chain Motor: 2025 Buying Guide
When automating your security systems, the heart of the operation lies in the drive unit. In the current market, the debate usually settles between the compact tubular motor for roller shutter systems and the heavy-duty external chain motor (also known as a side motor).
Choosing the wrong drive system can lead to structural issues, excessive noise, or even motor failure. In this expert analysis, we compare these two technologies to help you determine the most reliable solution for your 2025 project.
1. Architectural Integration and Aesthetics
The most immediate difference is how each motor impacts the visual and spatial footprint of the installation.

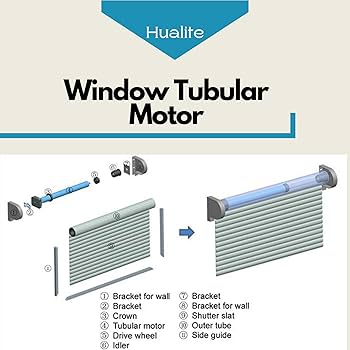

- Tubular Motor for Roller Shutter: As the name suggests, this motor is cylindrical and fits directly inside the axle tube. Because it is entirely concealed, it is the preferred choice for architects focusing on minimalist design. It requires no additional side room, making it perfect for residential windows and high-end shopfronts.
- Chain Motor (Side Motor): These are mounted externally on a bracket at one end of the shutter barrel. They are bulky and visible, often requiring a larger hood or decorative box to hide the mechanism.
2. Lifting Power and Load Capacity (The Technical Edge)
Understanding torque and lifting capacity is critical for E-E-A-T compliant decision-making.
- Tubular Motors: Designed for precision and medium-duty tasks. In 2025, high-performance tubular motor for roller shutter models can offer torque ratings up to 120Nm or 300kg lifting capacity. They are ideal for aluminum or PVC shutters.
- Chain Motors: These are the industrial workhorses. Utilizing a chain-and-sprocket reduction system, they provide massive mechanical advantage, capable of lifting steel industrial doors weighing over 1000kg.
3. Acoustic Performance and Noise Control
For residential applications, noise pollution is a key factor.
- Tubular Motors: Known for their “whisper-quiet” operation. Since the motor is encased within the metal axle and uses precision planetary gears, vibration is minimized.
- Chain Motors: Due to the exposed chain and heavy-duty gearboxes, these units are significantly louder. They produce a metallic mechanical sound that is standard in warehouses but often unsuitable for domestic environments.
4. Smart Home Integration in 2025
The tubular motor for roller shutter has seen the most innovation regarding the Internet of Things (IoT).
Modern tubular units now natively support:
- Matter and Thread Protocols: Ensuring seamless connectivity with Apple Home and Google Home.
- Bi-directional Communication: Allowing users to see the exact percentage of the shutter’s position on their smartphones.
- Obstacle Detection: Advanced sensors that stop the motor if a child or object is in the path, a feature less common in basic industrial chain motors.
5. Maintenance and Manual Override
- Maintenance: Chain motors are easier to service because they are accessible without dismantling the shutter. A tubular motor for roller shutter, however, is maintenance-free (sealed for life) but requires removing the axle if a replacement is ever needed.
- Emergency Operation:
- Tubular motors use a Manual Override (MO) system via a small hand crank.
- Chain motors use a Manual Chain Hoist, which is faster for opening very tall industrial doors during a power failure.
Comparison Summary Table
| Feature | Tubular Motor for Roller Shutter | Chain (Side) Motor |
|---|---|---|
| Primary Use | Residential & Retail | Industrial & Heavy Commercial |
| Installation | Internal (Space-saving) | External (Requires side room) |
| Noise Level | Ultra-Low (<45dB) | High |
| Max Lift | Medium (Up to 300kg) | Extreme (1000kg+) |
| Connectivity | Highly Integrated (Wi-Fi/Matter) | Basic (External Control Box) |
Final Verdict: Which One Should You Install?
Choose a tubular motor for roller shutter if your priority is aesthetics, quiet operation, and smart home compatibility. It is the gold standard for modern residential living and light commercial applications.
Choose a Chain Motor if you are managing an industrial warehouse, a fire-rated steel shutter, or any door where the sheer weight of the curtain exceeds 300kg.
For the latest in high-torque, energy-efficient shutter technology, consult with certified Walter technicians to ensure your installation meets 2025 safety standards.
