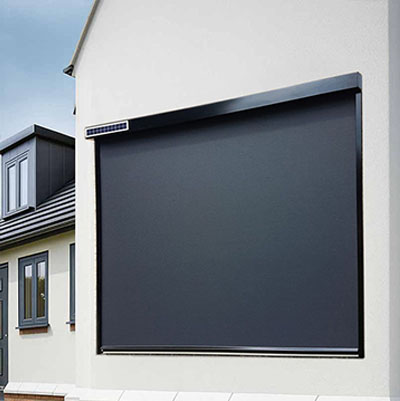

Motorized Zip Screen: Reliable Tubular Motor Solutions for Outdoor Shades
Outdoor living spaces such as patios, terraces, and balconies require effective protection from sunlight, wind, and external visibility. A motorized zip screen provides a modern and reliable outdoor shading solution by combining a zip-guided fabric system with a high-performance tubular motor. Designed for residential and commercial environments, this automated system delivers smooth operation, strong wind resistance, and long-term outdoor durability.
Powered by a tubular motor for zip screen applications, the system ensures stable movement, quiet operation, and precise positioning even under changing weather conditions.
Why Upgrade to an Automated Zip Screen System
Manual outdoor screens often require physical effort and offer limited control, especially when installed in large or exposed areas. An automated zip screen system significantly improves daily convenience while enhancing comfort and safety.
By upgrading to motorized operation, users can:
- Control the screen using a remote control, wall switch, or centralized system
- Maintain consistent fabric tension through a zip track structure
- Adjust sunlight, airflow, and privacy with precision
- Improve usability of outdoor areas throughout the year
This solution is widely adopted in modern outdoor shading projects where reliability and ease of use are essential.
Key Features of the Outdoor Zip Screen Solution
Our outdoor zip screen systems are engineered for stability, durability, and long service life:
- Wind-resistant zip track design for improved outdoor performance
- Quiet and reliable tubular motor designed for zip screen use
- Remote control and optional smart home integration
- UV-resistant and waterproof fabric options
- Custom sizes for patios, terraces, balconies, and pergolas
- Energy-efficient and low-maintenance operation
These features make the motorized zip screen suitable for both private homes and commercial installations.
Typical Applications
Patios and Balconies
Zip-guided outdoor screens create a comfortable shaded environment while maintaining ventilation and a clean architectural appearance.
Commercial Terraces and Hospitality Areas
Restaurants, cafés, and hotels benefit from reduced wind exposure, improved guest comfort, and extended outdoor seating usability.
Pergolas and Outdoor Structures
Integrated into pergolas or architectural frames, automated zip screen systems provide side protection without compromising design aesthetics.
Tubular Motor Technology for Zip Screen Systems
At the core of every automated outdoor zip screen is a tubular motor installed inside the roller tube. This concealed installation protects internal components from dust, moisture, and environmental stress.
Key motor advantages include:
- Stable torque output for consistent fabric tension
- Low-noise performance suitable for residential environments
- Long service life under frequent operation
- Compatibility with multiple control and automation systems
This motor-driven design ensures reliable performance for outdoor shading systems.
Technical Specifications
Below are typical technical parameters for reference. Custom configurations are available based on project requirements.
| Specification | Details |
|---|---|
| Motor Type | 45mm tubular motor |
| Rated Voltage | AC 230V / 50Hz |
| Motor Power | 90W – 230W (depending on torque) |
| Maximum Screen Width | Up to 6 meters |
| Maximum Screen Height | Up to 5 meters |
| Wind Resistance | Up to Class 6 (EN 13561, installation dependent) |
| Noise Level | ≤ 45 dB |
| Protection Rating | IP44 |
| Control Options | Remote control, wall switch, smart home integration |
| Installation | Inside roller tube (concealed) |
| Application Environment | Outdoor / semi-outdoor use |
Note: Maximum dimensions and wind resistance depend on fabric type, structure, and installation conditions.
Manual vs Automated Zip Screen Comparison
| Feature | Manual System | Automated Zip Screen |
|---|---|---|
| Operation | Hand-operated | Remote or automated |
| Convenience | Limited | High |
| Wind Resistance | Moderate | Strong |
| Position Control | Basic | Precise |
| Application Range | Small areas | Residential & commercial |
An automated system clearly outperforms manual alternatives in comfort, control, and durability.
Installation and Maintenance
Installation is straightforward for professional installers. The tubular motor fits neatly inside the roller tube, maintaining a clean and compact appearance. Once installed, the system requires minimal maintenance—periodic inspection and light cleaning are generally sufficient.
Technical guidance and customization options are available to support various project needs.
Why Choose Zhejiang Walter
Zhejiang Walter specializes in tubular motor solutions for outdoor zip screen systems. Each motor is tested for reliability, safety, and consistent performance before delivery.
By working with Zhejiang Walter, you benefit from:
- Proven experience in tubular motor manufacturing
- Strict quality control and international compliance
- Custom solutions for OEM and project-based applications
- Professional technical support from design to installation
Our goal is to deliver dependable automated shading solutions for global markets.
Frequently Asked Questions
What wind speed can motorized zip screens withstand?
When properly installed with a zip-guided track system, motorized zip screens can achieve wind resistance up to Class 6 according to EN 13561 standards. This level is suitable for most residential and commercial outdoor environments.
How can the system be integrated with a smart home?
Smart home integration is possible through compatible control modules or gateways. The tubular motor can connect to home automation systems, enabling control via mobile apps, timers, or voice assistants.
Is a 45mm tubular motor suitable for large outdoor screens?
Yes. A 45mm tubular motor provides sufficient torque and stability for medium to large zip screen applications and is widely used in commercial and residential projects.
Does the system require frequent maintenance?
No. The system is designed for low maintenance. Occasional inspection of fabric tension, guide tracks, and electrical connections is usually sufficient.
Conclusion
A motorized zip screen offers an effective and elegant solution for modern outdoor shading needs. By combining zip-guided fabric with a reliable tubular motor, this system delivers comfort, durability, and automation for both residential and commercial environments.
Motorized Zip Screen motors:
WM45DS
Electronic limit switch with Built-in Receiver
12V Dc
Crowns and Drive wheels for Motorized Zip screen:
Crown: HTH112
Code:201112001
Drive whee: HTL36
Code: 202036001
Adapter diameter 60mm
For 63mm round zip screen tube
Crown: HTH78/JLC-01-04
Code: 5662220002
Drive whee: HTL40
Code: 202040001
Adapter Diameter 75mm
For 78mm round zip screen tube
Crown: HTH114
Code: 201114001
Drive whee: HTL114
Code: 202114001
Adapter diameter 82.5mm
For 85mm zip screen tube
For example you can select the built in receiver motors in below table:
| Model | Torque | Speed | Voltage | Frequency | Power | Current | Running time | Protection index | Max turns | Total length |
| YYGL45R-15/17 | 15Nm | 17rpm | 230V | 50Hz | 143W | 0.62A | 4 minutes | IP44 | 22/42 | 560 |
| YYGL45R-20/15 | 20Nm | 15rpm | 230V | 50Hz | 156W | 0.68A | 4 minutes | IP44 | 22/42 | 560 |
| YYGL45R-30/15 | 30Nm | 15rpm | 230V | 50Hz | 204W | 0.9A | 4 minutes | IP44 | 22/42 | 590 |
| YYGL45R-40/15 | 40Nm | 15rpm | 230V | 50Hz | 218W | 0.95 | 4 minutes | IP44 | 22/42 | 630 |
